RS-358  FEATURES：
★  Color Smoke-Detector Camera
★  1/3＂SONY CCD; 420TVL;1.0Lux/F1.2
★  Smoke-Detector;Easy Installation

SPECIFICATION：
Pick-up Device：1/3＂SONY CCD
Scanning Area：4.9mm(H)×3.7mm(V)
Picture Element：PAL:500(H)×582(V) NTSC:510(H)×492(V)
TV System：PAL/NTSC
Horizontal Resolution：420TV Lines
Minimum Illumination：0.8Lux/F1.2
S/N Ratio：More than 48dB
Auto Electronic Shutter：PAL:1/50s-1/100,000s NTSC:1/60s-1/100,000s
Auto Iris Control:——————
Gamma Characteristic：0.45
Auto Gain Control：Auto
Auto White Balance：Auto
Back Light Compensation：Auto
Synchronous System：Internal Synchronization
Lens Mount:Board lens:3.6mm
Video Output：1.0Vp-p,75Ω，BNC Connector
Power Supply：DC 12V
Power Consumption：110mA
Operating Temperature：-10℃~+50℃

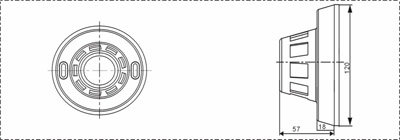

Dimensions(W×D×H)：A:Φ120mm×57mm
Weight(g)：A:165g
Material：ABS Plastic Cover
